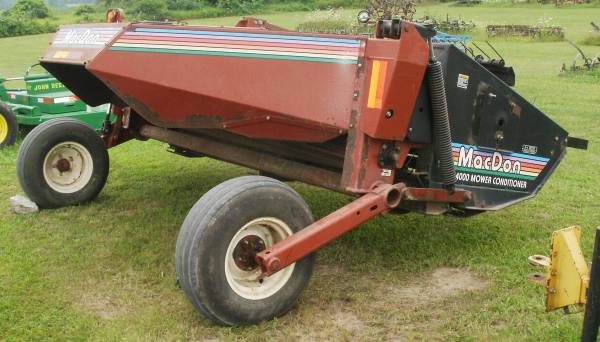

MacDon 4000 9Ft Mower Conditioner Field Ready - $7,350 (Alpena)
2452 King Settlement Rd near TAYLOR HAWKS
condition:
excellent
make / manufacturer:
MacDon
model name / number:
4000
size / dimensions:
9 Foot
QR Code Link to This Post
Comes with 2 hydraulic cylinders
Good solid haybine
SPECIFICATIONS
DIMENSIONS 9 FT. MOWER CONDITIONER
Overall Width:
Transport Position 147.5 in. (3750 mm)
Field Position 167.0 in. (4243 mm)
Overall Length:
Transport Position 159.8 in. (4059 mm)
Field Position 166.8 in. (4238 mm)
Overall Height:
Transport Position 59.5 in. (1510 mm)
Field Position 42.6 in. (1083 mm)
Weight 3318 lbs. (1505 kg)
CUTTERBAR
Cutterbar Width 111 in. (2819 mm)
Cutting Height (on skids) 1 to 4 in. (25 to 100 mm)
at 9° guard angle
Guard Angle (adjustable) 6° to 12° below horizontal
HEADER
Header Flotation -2.5 to +6.7 in. (-64 to +170 mm)
Maximum Header Lift 21.5 in. (545 mm) to guard tip
KNIFE
Drive Type Belt driven wobble box (enclosed oil bath)
Speed 1620 strokes or 810 cycles per minute
Stroke 3 in. (76 mm)
Sections Over-serrated, low shoulder
REEL
Drive Type Belt primary to chain final
Reel Type 5 bats (4 or 6 bats optional), replaceable steel pick-up tines,
cam action, polymer tine tube bearings
Diameter 42.5 in. (1080 mm)
Tine Tip (Peripheral) Speed 6.6, 7.0, 7.5 or 7.9 mph (10.6, 11.3, 12.0 or 12.7 km/h)
Rotational Speed 53, 56, 60 or 63 rpm
Length 104.3 in. (2650 mm)
SPECIFICATIONS
CONDITIONER ROLLS 9 FT. MOWER CONDITIONER
Drive Type Gear driven through telescoping u-joints
Roll Type Helical intermeshing fabric reinforced rubber
Or
Helical intermeshing steel
Roll Diameter Rubber: 9.5 in (242 mm) Steel: 10.0 in (254 mm)
Roll Length 105.8 in (2687 mm)
Roll Speed 729 rpm
WHEELS
Tread Width 100 in (2540 mm)
Tires 9.5L – 14 I1 Rib Implement
Tire Pressure 20 psi (138 kPa)
MATERIAL DISCHARGE
Minimum Width 33.3 in (845 mm)
Maximum Width 84.9 in (2156 mm) (wider in heavy crop)
Number of Width Settings 7
OPERATING SPEED
Range up to 8 mph (13 Km/h)
Recommended Speed for Most Conditions 5 mph (8 Km/h)
TRACTOR REQUIREMENTS
Minimum Power 35 hp (26 kW)
Minimum Weight 5000 lbs. (2268 kg)
PTO 540 rpm with ASAE Standard location
Drawbar Clevis or straight, ASAE Standard hitch location
Hydraulics:
Type Two double acting remote circuits
Minimum Pressure 1350 psi (9300 kPa)
